Tempstar furnace, energy saving air conditioner and Honeywell F-100 air cleaner provide energy savings for a Hilliard, OH home.
Heating & Cooling problem
For the second consecutive year, this homeowner added costly R22 refrigerant to their air conditioner because of a leak in the indoor coil. At 25 years old, the entire system had exceeded its design-life. The old furnace was less than 70% fuel efficient, had a fussy standing-pilot ignition system, and the air filter access was inside the furnace.
Location
- Hilliard, OH 43026
Solution

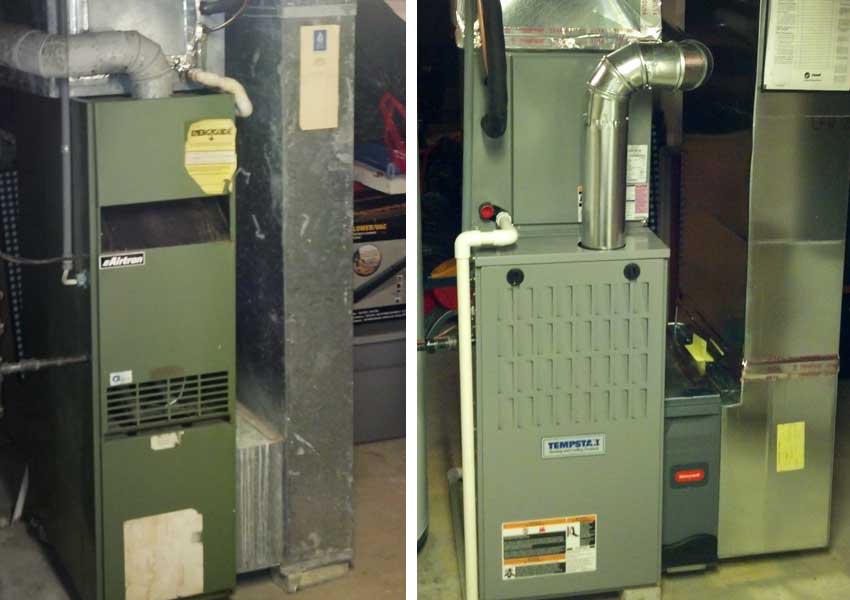

After assessing the existing arrangement, and conversing with the homeowner with options to save on energy costs, a simple system replacement was custom-designed:
- Tempstar 80% efficiency furnace has a great fit because of its short cabinet—the “step-up” model N8MX with high-efficiency ECM blower motor was selected.
- New indoor coil fit on top, adapted to the supply air plenum, and new refrigerant lines to prevent incompatible oil contamination.
- Honeywell F100 media air cleaner, because the readily-available 16 x 25 x 4” air filter is an economical way to improve indoor air quality.
- Basic air conditioner, N4A3 rated the minimum 13 SEER efficiency, far more efficient than the previous 9 SEER unit.
- Inexpensive Honeywell programmable thermostat meets the state code.
- Payment with Special Financing terms on the purchase was provided by Wells Fargo
- Premium Protection Plan extended warranty covers warranty repair and diagnostic fees until 10th anniversary.
Result
This homeowner now enjoys heat from a furnace with modern electronic ignition, and high-efficiency blower motor.
Project Benefits & Details
- New Tempstar air conditioner is a compact size, quieter, and uses the current R410A refrigerant.
- Capture rate of fine particles by the thicker air filter is greatly improved, and replacement is now easy, on a semi-annual interval.
- Thermostat is easy to use and has a 5-year warranty.
- Custom Air installation completed in one day, and all the old equipment was hauled away to be recycled.
- Tempstar’s 10 year warranty on all parts, the third-party extended warranty coverage, and Custom Air’s 1-year warranty on other new materials and workmanship give peace-of-mind.
- Monthly payments are affordable and the savings on the electric bill are a bonus.
- CUSTOM AIR TEAM – Comfort Advisor: Scott Haring, Project Manager: Vic, Installation: Chris and Matt
Product Highlight
Honeywell F-100 Whole-House Media Air Cleaner
The F100 Whole-House Media Air Cleaner is up to 85% more efficient at capturing both microscopic particles like dust and smoke in addition to larger contaminants such as mold spores and pet dander. This highly effective air cleaner also requires minimal maintenance. Basically, once you install the filter you only need to replace it every 6-12 months. That’s four times longer than a standard one-inch furnace filter.
- Up to 85% more efficient at capturing airborne particles compared to a standard one-inch filter
- Captures both microscopic particles and larger contaminants
- Lasts up to four times longer than a standard one-inch furnace filter
- Replace filter every 6-12 months
- Widely compatible – Works with all gas, oil and electronic forced air furnaces and air conditioning systems
- Easy to upgrade to a higher-performance electronic air cleaner
- Five-year warranty
